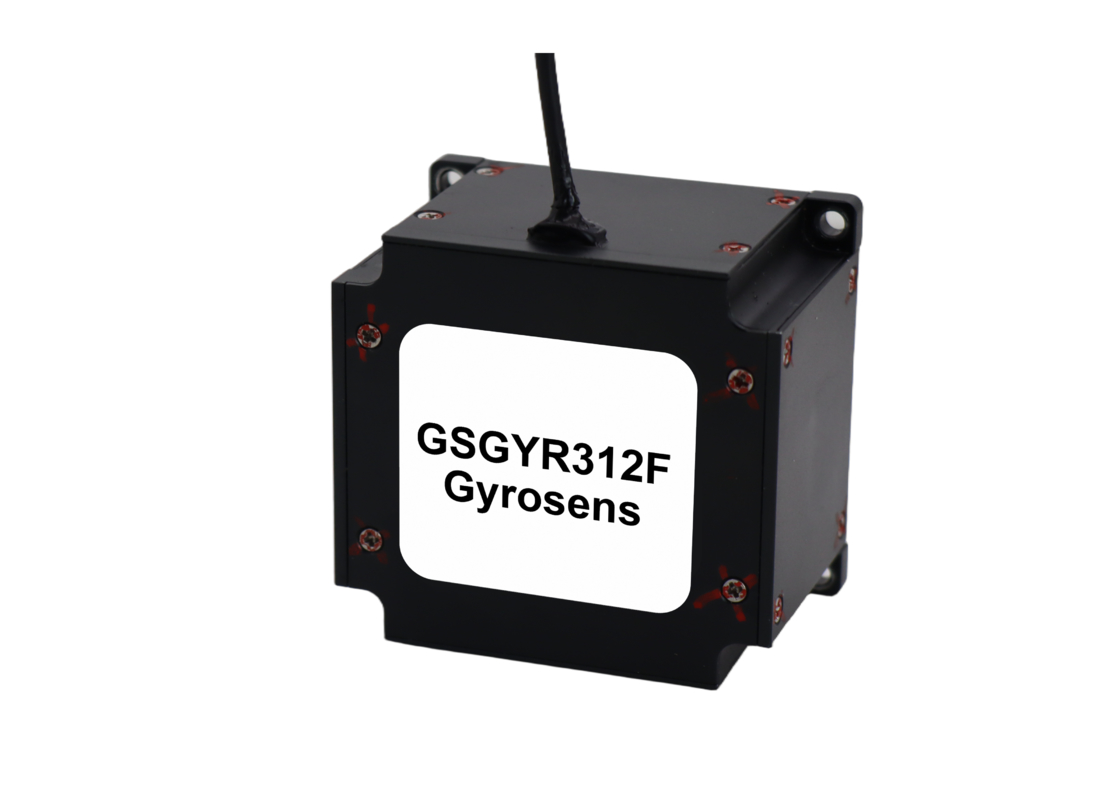

Name: GSGYR312F Three Axis Fiber Optic Gyroscope with RS422 Digital Output and Instant Start
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSGYR312F
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSGYR312F Three Axis Fiber Optic Gyroscope with RS422 Digital Output and Instant Start

RS422 Fiber Optic Gyroscope

Digital Output Three Axis Gyroscope

Instant Start Inertial Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSGYR312F

Request A Quote

Product Details

Power Voltage:

+5V DC

Bias Magnetic Sensitivity:

<0.05°/h/Gs

Bias Repeatability:

<0.3°/h

Run-up Time:

Output:

RS422

Highlight:

RS422 Fiber Optic Gyroscope

Digital Output Three Axis Gyroscope

Instant Start Inertial Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

Contact Now

Product Description

GSGYR312F Three Axis Fiber Optic Gyroscope

Product Introduction

This inertial angle rate sensor utilizes the optical Sagnac effect to measure rotational angular velocity along the sensitive axis. It employs a digital closed-loop detection circuit to extract optical path differences caused by external angular speed, with voltage signal modulation and demodulation for real-time angular velocity detection.

Function

Composed of an optical angular velocity sensitive unit and signal detection system, this product provides triaxial angle increment information and internal temperature data.

Key Features

Accurate angular speed measurement for moving objects
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Instant start capability
Simple structural design
Three-axis angular speed measurement

Applications

Photoelectric elevator systems
Flight control platforms
Strapdown inertial navigation
Optical and photographic instruments
Platform stabilizers
Inertial measurement instruments

Technical Specifications

Parameter	GSGYR312F-L	GSGYR312F	GSGYR312F-H
Power supply parameter
Power Voltage	+5V DC	+5V DC	+5V DC
Output	RS422	RS422	RS422
Product performance
Run-up time	3s	3s	3s
Bias	<1°/h	<1°/h	<1°/h
Bias stability 25°C	<0.3°/h(10s smoothing)	<0.1°/h(10s)	<0.1°/h(10s smoothing)
Bias temperature sensitivity 1°C/min	<1°/h	<0.5°/h	<0.5°/h
Bias repeatability	<0.3°/h	<0.1°/h	<0.1°/h
Bias magnetic sensitivity	<0.05°/h/Gs	<0.05°/h/Gs	<0.05°/h/Gs
Random walk	<0.01°/√h	<0.01°/√h	<0.01°/√h
Scale factor nonlinearity	<20ppm	<20ppm	<20ppm
Scale factor asymmetry	<10ppm	<10ppm	<10ppm
Scale factor repeatability	<20ppm	<20ppm	<20ppm
Threshold	<0.05°/h	<0.05°/h	<0.05°/h
Resolution	<0.05°/h	<0.05°/h	<0.05°/h
Bandwidth	≥200Hz	≥200Hz	≥200Hz
Dynamic range	±500°/s	±500°/s	±500°/s
Environment
Size	71.5×71.5×45mm
Weight	<340g±10g
Operating temperature	-45°C～+70°C
Storage temperature	-55°C～+80°C

Dimensions
