Name: GSGYR131M Single Axis Digital Gyro Sensor with ±75°/s Range ≤15°/h Bias Stability and ≤1°/s Bias Temperature Sensitivity
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSGYR131M
Price: 431.00 USD
Availability: InStock

Home > Products > Electronic Gyroscope Sensor >

GSGYR131M Single Axis Digital Gyro Sensor with ±75°/s Range ≤15°/h Bias Stability and ≤1°/s Bias Temperature Sensitivity

±75°/s Range Digital Gyro Sensor

≤15°/h Bias Stability Single Axis Gyroscope

≤1°/s Bias Temperature Sensitivity Electronic Gyroscope Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSGYR131M

Request A Quote

Product Details

Turn-on Time:

Weight:

<150g

Range:

±75°/s

Bias Temperature Sensitivity:

≤1°/s

Bias Stability:

≤15°/h

Bias:

0°/s±1°/s

Highlight:

±75°/s Range Digital Gyro Sensor

≤15°/h Bias Stability Single Axis Gyroscope

≤1°/s Bias Temperature Sensitivity Electronic Gyroscope Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Get Best Price

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

Get Best Price

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Get Best Price

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Get Best Price

86--17719566736

Contact Now

Product Description

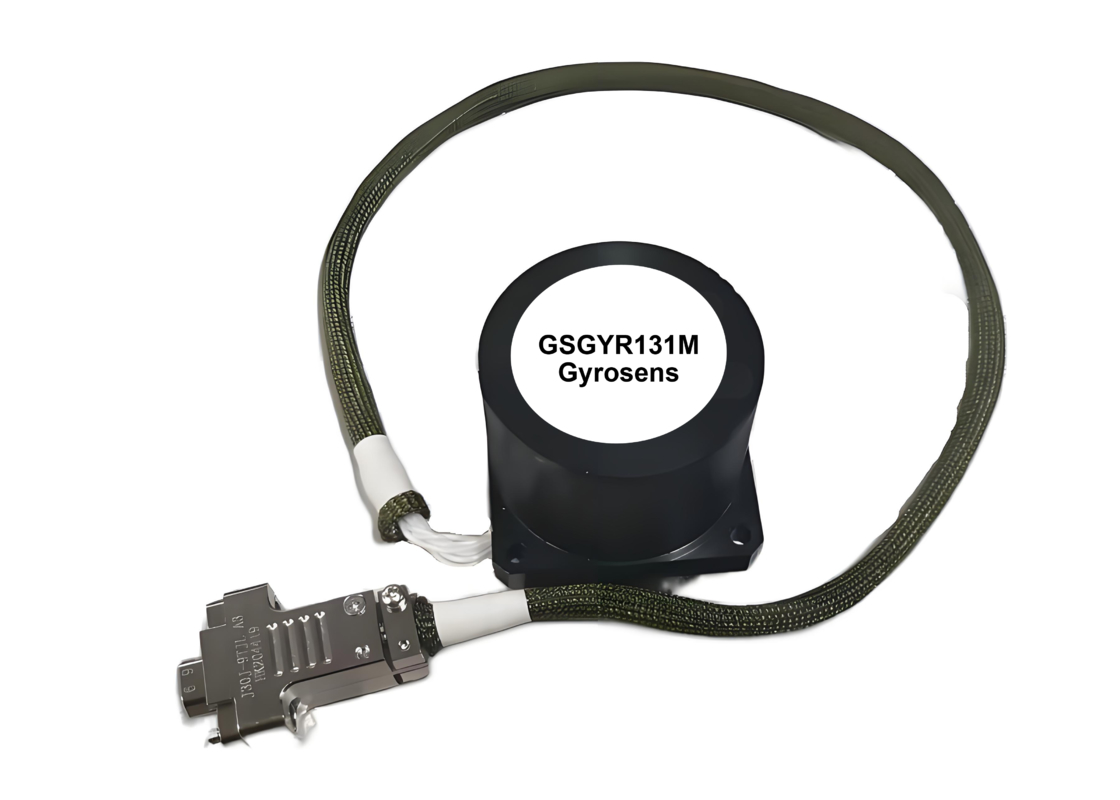

GSGYR131M Single Axis Digital GYRO Sensor

The GSGYR131M single-axis digital quartz gyroscope measures angular velocity information in real time for carriers including combat vehicles, UAVs, and aerial bombs. Designed for inertial navigation, flight control, and attitude stabilization systems, it is widely used across petroleum, coal, water resources, automotive, marine, and aviation industries.

The gyroscope operates on the principle that quartz deformation during rotation affects crystal vibration frequency. By measuring frequency changes, it calculates angular speed and direction.

Key Features

High resolution
Digital output
Wide bandwidth
Low power consumption
High reliability
Wide operating temperature range
Compact size
Fast start-up
Temperature compensation

Applications

Petroleum industry
Spaceflight
Aviation
Navigation
Military weapons
Vehicles

Technical Specifications

Parameter		GSGYR131M
Power supply parameter
Power Voltage		+6~+20V DC
Product performance
Turn-on time		2s
Bias		0°/s±1°/s
Bias stability		≤15°/h
Bias temperature sensitivity		≤1°/s
Range		±75°/s
Weight		<150g
Power 25°C		0.3W
Supply current		≤20mA
Dimensions		35mm35mm40mm
Environment
Operating temperature		-40°C～+85°C
Storage temperature		-55°C~+100°C
